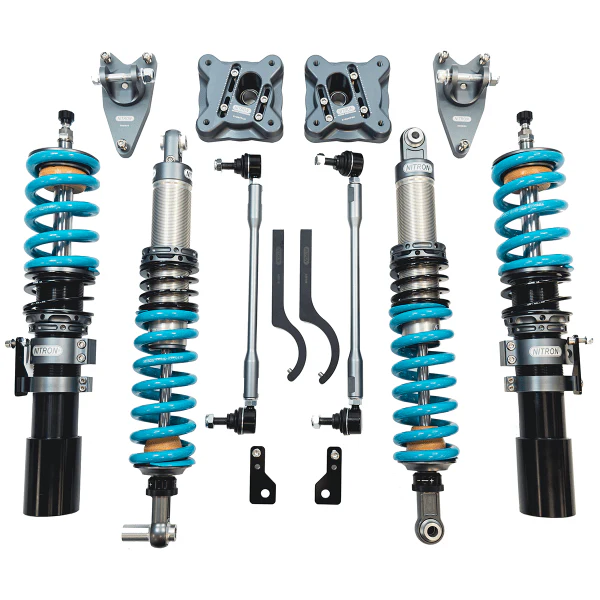

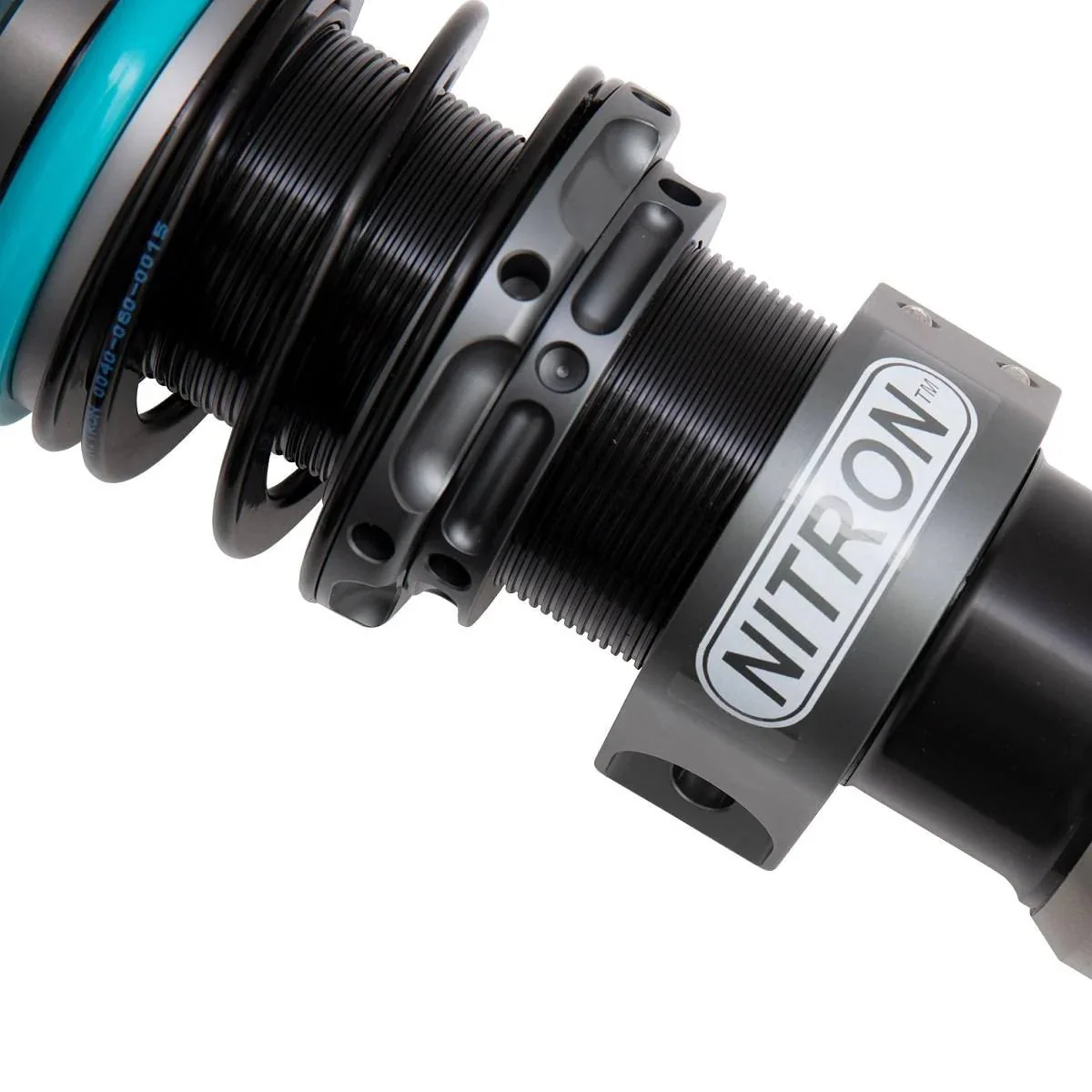

Precision Suspension for Road and Track

Upgrade your BMW G87 M2 with the Nitron NTR R1 Coilover Kit – a premium, hand-built suspension system engineered for high-performance road use and serious track performance.

Compatibility:
This kit is designed for the BMW G87 M2 produced from 2023+

Developed from Nitron’s motorsport-derived R3 system, the NTR R1 offers 2-way combined damping adjustment for bump and rebound – delivering precise chassis control in a compact, easy-to-use format.

Key Features of the Nitron NTR R1 Kit

2-way damping adjustment (bump and rebound combined)
Compatibility: BMW G87 M2 2023+
True or Divorced rear spring configuration
Choice of spring rates: Fast Road or Track
Ultra-low friction internals to minimise fade
Titanium and hard-anodised components for durability
Lightweight, corrosion-resistant construction
Fully serviceable and rebuildable
Hand-assembled in the UK to order

Spring Rate Options – Tuned by Nitron for the BMW G87 M2

Each Nitron NTR R1 kit is supplied with carefully selected spring rates and damper lengths, developed through extensive testing on the G87 platform. These setups provide exceptional balance and control for both fast road and focused track use.

Choose from two optimised configurations:

Fast Road Setup

Perfect for responsive road driving with the flexibility for occasional trackdays.

Track Setup

Offers increased stiffness, sharper response, and reduced body roll under aggressive driving.

True rear spring rates appear lower due to different mounting ratios and spring positions – overall stiffness is comparable.

Custom Options Available

Custom spring rates, lengths, and damper lengths can be requested for non-standard setups. Contact us before ordering and we’ll coordinate with Nitron to tailor your kit.

True vs Divorced Rear – What’s the Difference?

True Rear Setup

A single coilover unit combining spring and damper – preferred for track-focused builds thanks to lower weight and sharper handling feedback.

Divorced Rear Setup

Maintains the factory-style separate spring and damper layout. Easier to install and ideal for those retaining OEM geometry.

Which Should You Choose?

Choose True Rear for maximum performance and tuning flexibility
Choose Divorced Rear for a more traditional setup or straightforward install

Race-Bred Engineering for the BMW G87 M2

The NTR R1 shares its internal design with Nitron’s full competition-spec R3 system. With low-friction components and a high-pressure monotube design, it provides consistent, fade-resistant damping in all conditions.

Whether you're hitting the track or carving through your favourite roads, the NTR R1 delivers confident control lap after lap.

Built to Order in the UK – Customised for You

Each kit is built to your preferred spec at Nitron’s UK facility. Choose your spring rate and rear layout at checkout. Standard lead time is 2–4 weeks – contact us for a live ETA if needed.

Why Buy from Clubsport Garage?

We’re an authorised Nitron dealer with deep experience in BMW M suspension and performance chassis products.

First-hand knowledge of the G87 M2 platform
Expert setup advice tailored to your goals
Fast, insured UK and worldwide shipping
Personalised aftersales support

Not sure which layout or spring rate to choose? Get in touch – we’re happy to help.

BMW G87 M2 | (2022 - Present)

Zunsport Front Grille kit for BMW G87 M2 (2015-2018)

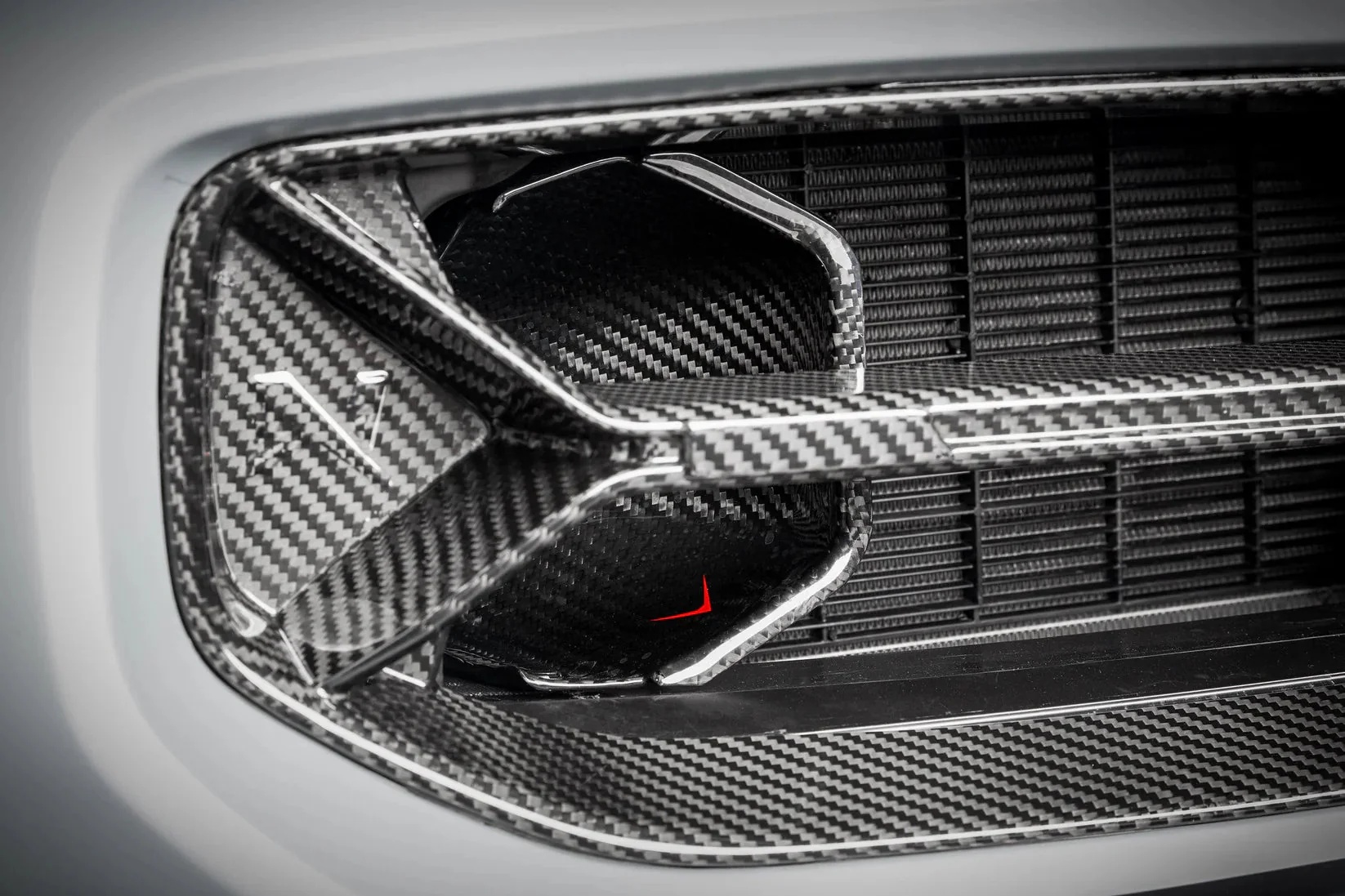

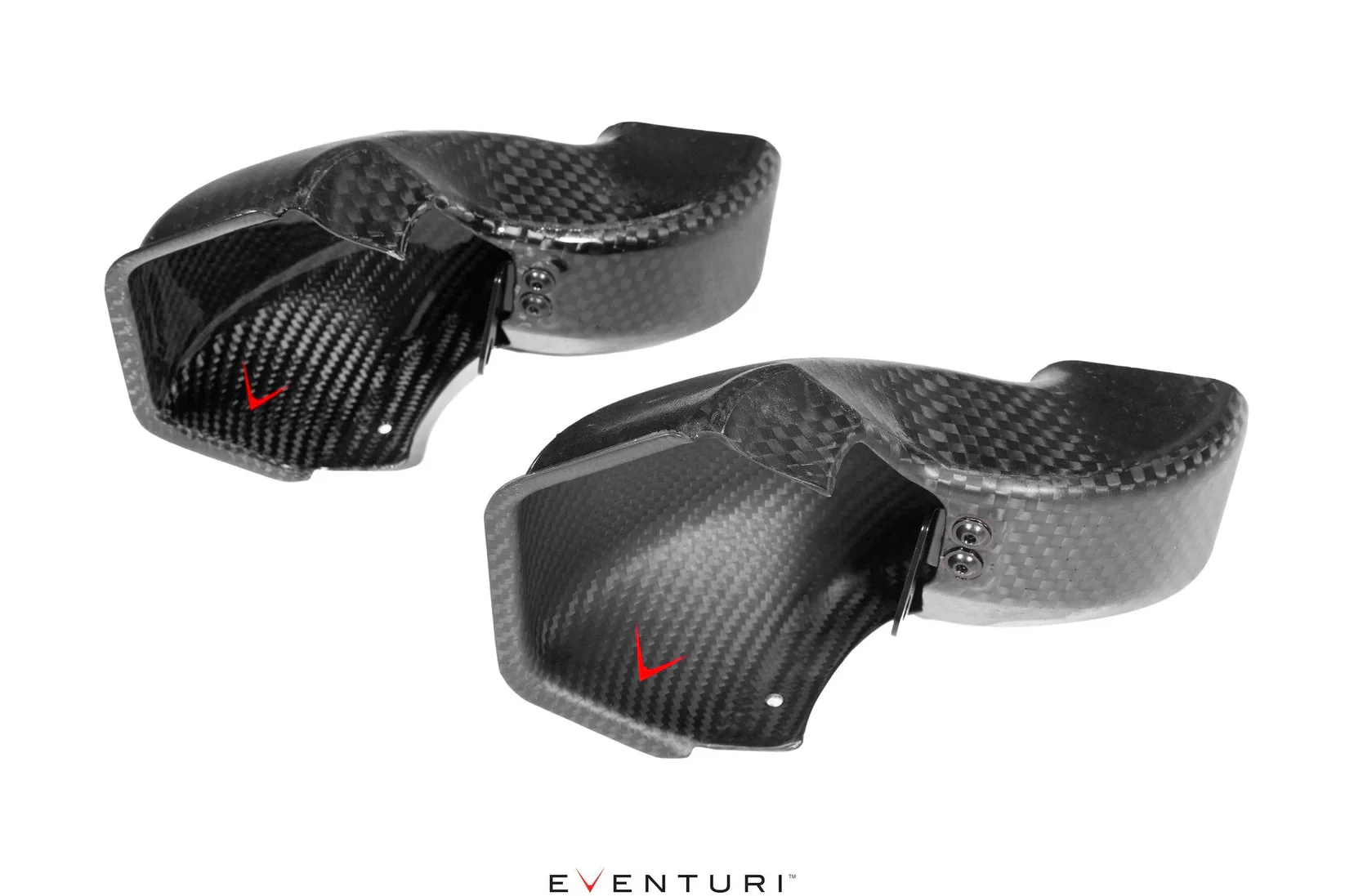

Eventuri Carbon Intake Scoop Set for BMW G87 M2

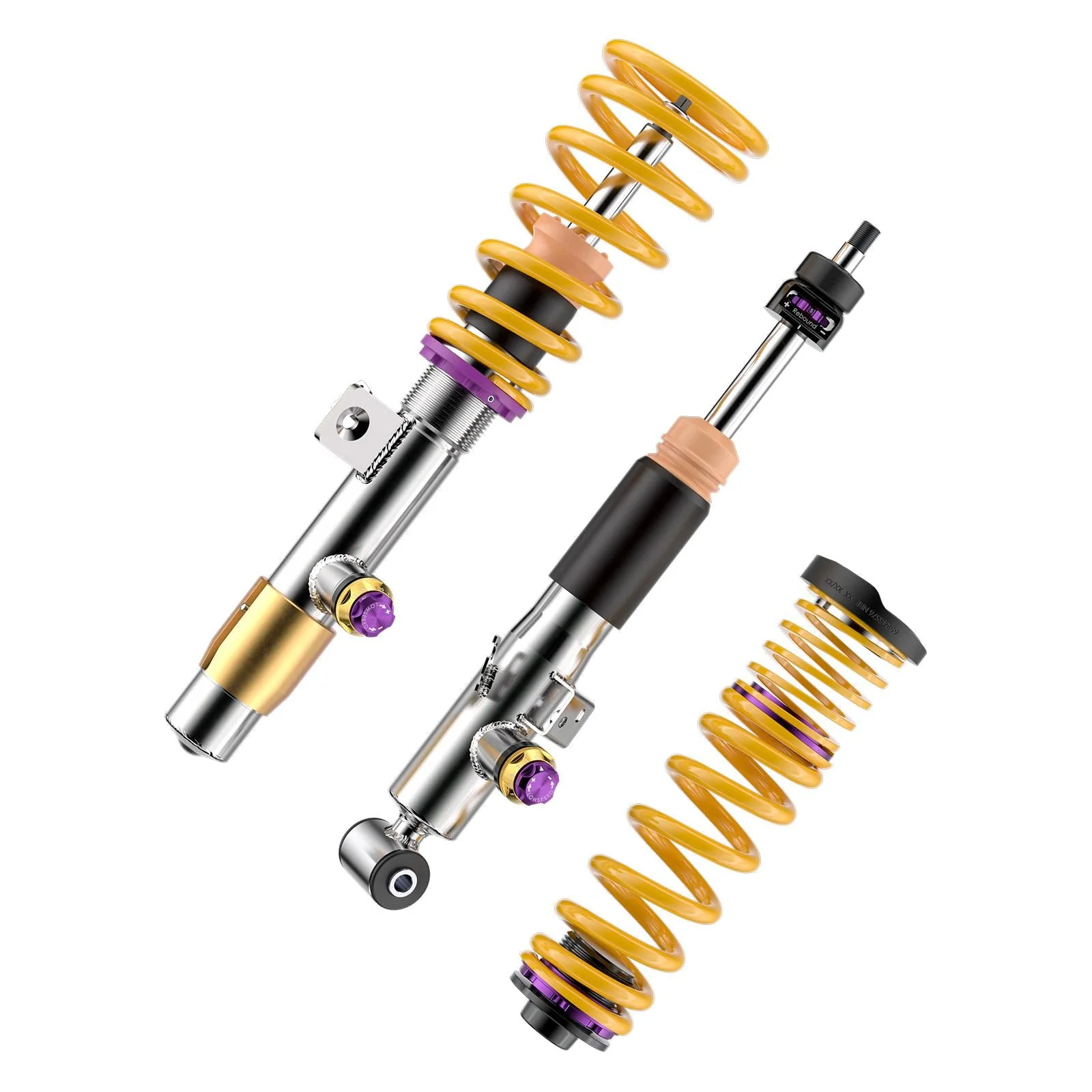

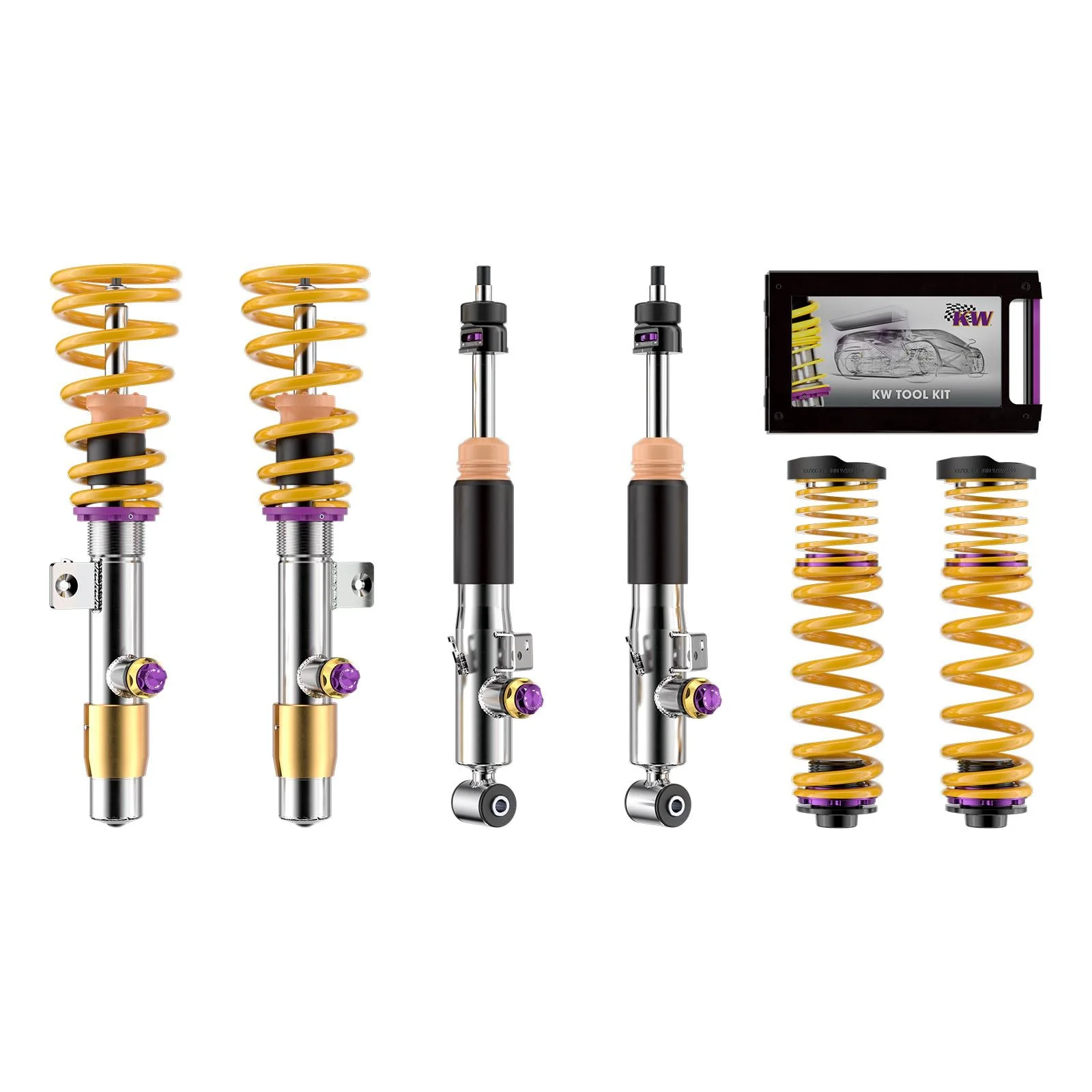

KW V3 Coilovers for BMW G87 M2 RWD (Including deactivation for EDC)

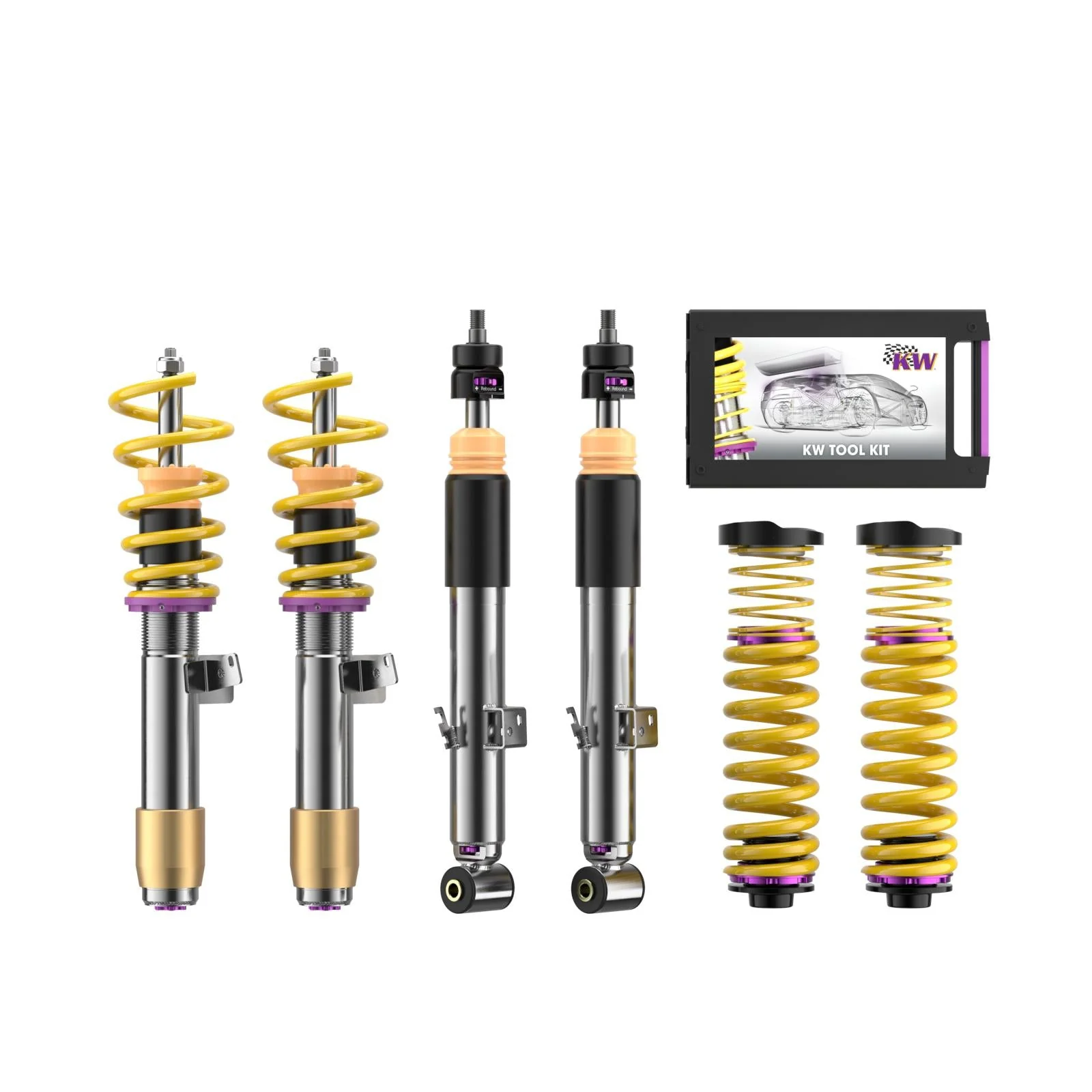

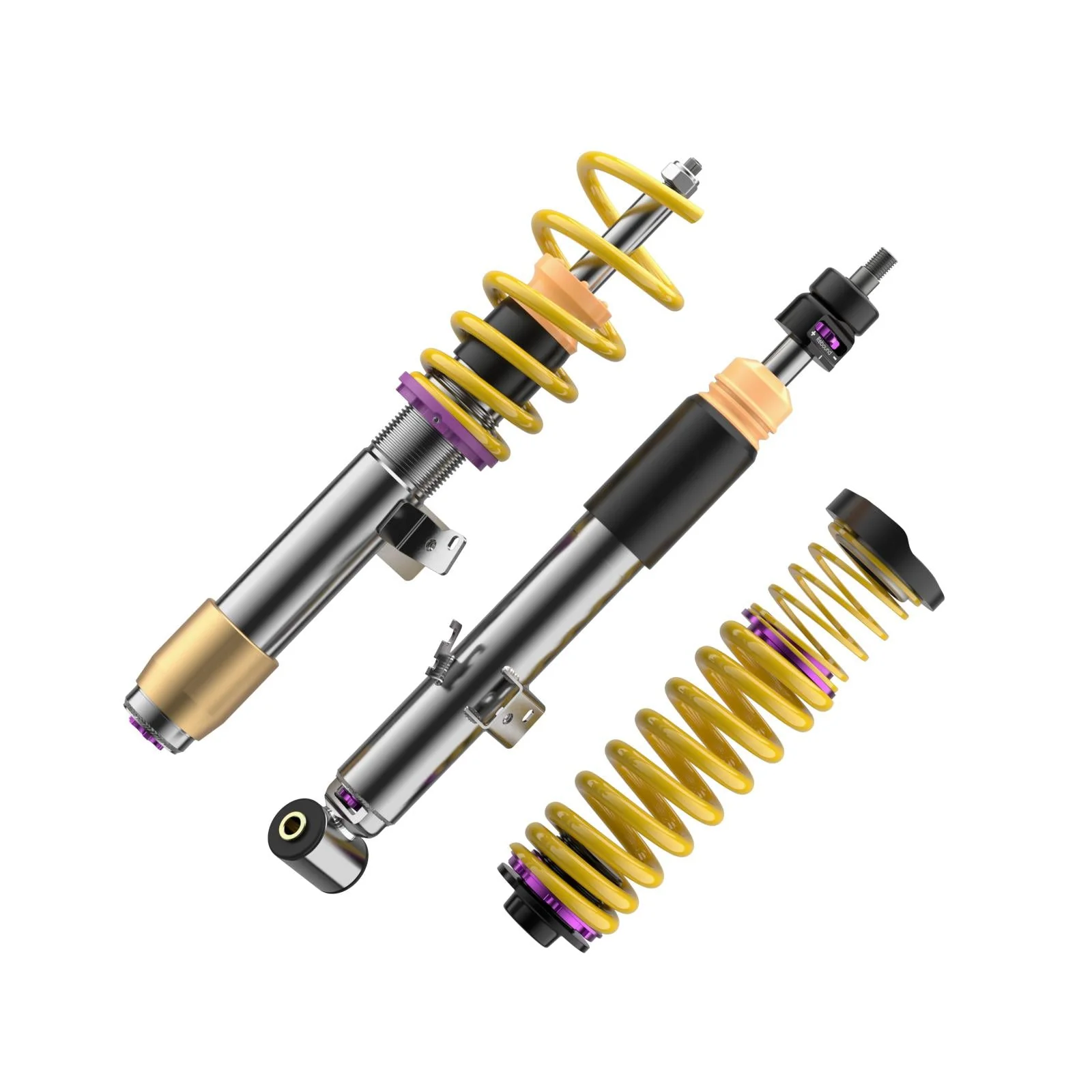

KW V4 (3-way adjustable) Coilovers for BMW G87 M2 (Including deactivation for EDC)
